Stylish Stainless Steel Column 168mm Diameter Cylinder Swing Gate Recognition Systems
PRODUCT DESCRIPTION AND APPLICATION
SINOMATIC Swing Turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff .
Application
The brush-less anti-collision swing barrier is an intelligent passage management equipment developed
and produced by our company. It integrates the exquisite mechanical transmission, microprocessor
control, voice and various reading and writing technologies. By configuring different reading and
writing equipment, the intelligent control and management of the passage can be completed. The
machine can realize the public channel's dissuade and access control
Technical Specifications
| Description | Parameter |
| Framework | SS304 |
| Dimension | Colunm diameter:168mm |
| Power supply | AC 220V/110V±10% |
| Motor voltage | DC24V (Brush-less motor) |
| Access device input | Dry contact |
| Optimal flow rate | 25 to 30 person/minute |
| Gate swing angle | 90 deg per side |
| Gate opening/closing speed | 1s |
| Reset time when power on | 3s |
| Arm material | Transparent acrylic/ SS304 |
| Default arm length | 530mm |
| Arm max. bearing | 30KG |
| Working environment | Indoor/outdoor with shelter |
| Working temperature | -15°C~80°C |
| Relative humility | ≤95%, Non condensation |
| Communication interface | RS485 standard(distance ≤ 1200m) |
Our advantage:
The stylish stainless steel column and clear toughened glass wing present a bright and concise design.
Bi-directional opening facilitates fast and safe access. It can also be integrated with recognition systems for user friendly access control.
Featured with high security and stability, it’s suitable for banks, corporate headquarters, airports and leisure venues.

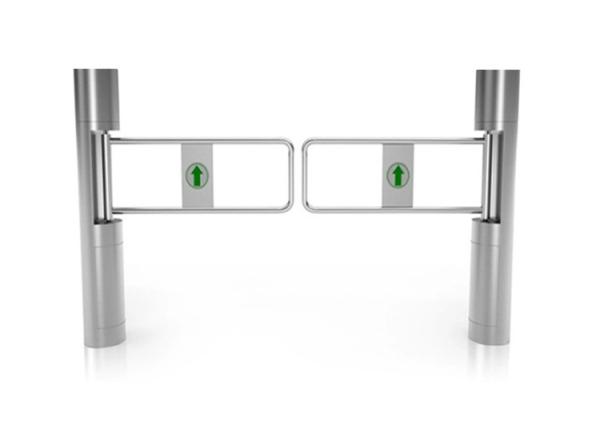

Product photos:
Features:
1. Stainless steel housing, rain-proof laser opening, novel and beautiful.
2. LINIX (the best micro-motor brand in China) brush-less DC motor is used and the surface is electroplated.
3. Length of arm: 500mm to 800mm.
4. Fault detection and alarm functions, easy to use and maintenance.
5. The running status can be programmed and controlled with the built-in keyboard on the main board.
6. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
7.Anti-breakthrough function. The gate is locked automatically until opening signal received.
8. Synchronization functions (for dual gate equipment).
9.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
10. Gate can be set as normally open or normally closed.
11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)
12. Direction can be set as unidirectional or bidirectional.
13. The device can be connected to management computer to realize remote control and management.
14. LED direction indicator (optional)
15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
16. Support infrared photocell for anti-pinch and reset function.
