Paint Reflective Crash Rate Hotel Entrance Control 380V Hydraulic Road Traffic Blocker
Standard Road blocker size: (mm)
L2000*W1000*H760,Rising height:500(Customized)
L2500*W1000*H760,Rising height:500(Customized)
L3000*W1000*H760,Rising height:500(Customized)
L3500*W1000*H760,Rising height:500(Customized)
L4000*W1000*H760,Rising height:500(Customized)
L4500*W1000*H760,Rising height:500(Customized)
L5000*W1000*H760,Rising height:500(Customized)
L5500*W1000*H760,Rising height:500(Customized)
L6000*W1000*H760,Rising height:500(Customized)

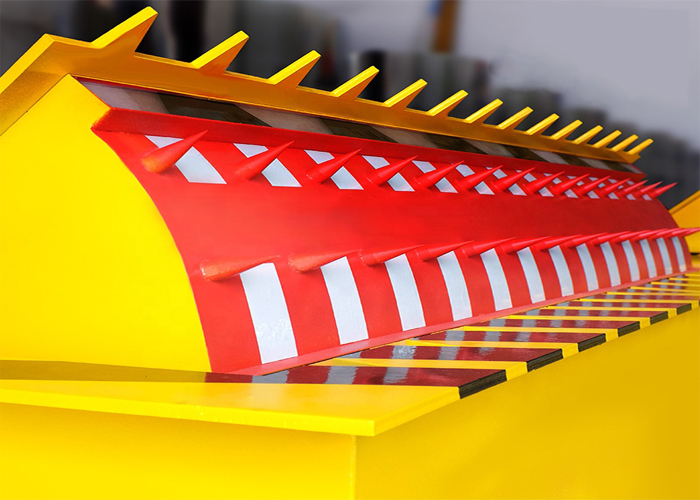

PRODUCT PHOTO
Standard Dimension (Can be customized)
TECHNICAL SPECIFICATIONS
| Basic Information |
| Rising time | 1-3s (Adjustable) |
| Dropping time | 1-3s (Adjustable) |
| Dimension - Length | 3-6m (On request) |
| Width | 1000mm |
| Height underground | 760mm |
| Rising height | 500mm |
| Spikes | φ30mm*90mm (Optional) |
| Panel/Housing/Spikes | A3 Steel |
| Panel thickness | 16(default) /20mm &25mm optional |
| Surface color (Customizable) | Red/Green/Yellow/Black |
| Anti-rust treatment | 2 layers spray paint |
| Reflective tape | White/Black, Yellow/Black etc |
| LED warning light | RGB, various dynamic mode |
| Actuator |
| Hydraulic actuator | Electric & Manual pump integrated |
| Power supply | 380VAC |
| Power consumption | 3.75KW~5.5KW |
| Shock-reducing | Yes |
| Industrial hydraulic tank | 80L~120L |
| Hydraulic hose | Conical sealing, high pressure |
| Ambient temperature | -35℃~75℃ |
| Bearing capacity | 0-100tons |
Features of hydraulic road blocker:
1. System: hydraulic
2. Voltage: 3 phase 380V(control voltage DC24V)
3. Rising time: 1S to 3S (adjustable)
4. Working temperature: -35℃ to 75℃
5. Material: A3 steel, spay anti-rust paint
6. Weight: ± 1.2Tons
7. The road blocker has a buffer function
8. LED light color: red, blue, green, yellow, purple, white etc.(total 20 colors are available)
9. In case of power outage, the blocker can be manually raised and lowered.
10. Remote control distance: 50 to 100mm (depends on the environment)
11. Device running noise: ≤60 decibel
12. Control solenoid valve :24v
Application
Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.
Production line
Case reference
Professional installation instruction
*Easy-to-install, easy-to-maintain is what we pursue.
*We provide detail & professional installation instruction (in English) to make your construction much easier. With all the technical data, dimension and etc.
*Furthermore, our after-sales service support can also provide remote (via phone call) instruction for free.
FAQ:
Q: Are you trading company or manufacturer?
A: We are manufacturer. Warmly welcome you to visit us on site.
Q: Can I order products without your logo?
A: Sure. OEM service is available as well.
Q: What is the payment term?
A: 30% deposit and 70% before delivery
Q: What is the inco-term?
A: EXW, FOB, CIF, CFR, CPT, DDU, DDP etc.
