Swipe card access control electronic fully automatic dry contact signal swing barrier turnstile gate
Introduction of Pedestrian Swing Gate:
Sinomatic swing gates are ideal for indoor applications requiring access in one direction and ban on passage in the opposite.
Their elegant and versatile design presents a secure and stylish solution that can blend into numerous locations.
After each passage the gate swing panel is smoothly reset to home position.
Applications of Pedestrian Swing Gate:
Pedestrian swing gate SN-SB03 is suitable for indoor or outdoor with tent. They are optimized economical solution for railway,
bus station, factory, colleges, commercial building, library, stadium, hotel, bank and etc.
Features of Pedestrian Swing Gate:
- Support bi-directional opening
- Can integrate with access control system.
- Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
- Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
- During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
- Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
- Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
- Gate length can be easily customized to fit site requirement.
- Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
- Gate motor mechanism is self lock at open and close position.
Specifications of Pedestrian Swing Gate:
| Description | Specification |
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor voltage | DC 24V (brush-less motor) |
| Max flow rate | 30 person per minute |
| Gate swing angle | 180 degree |
| Gate opening speed | 1s to 2s |
| Reset time when power on | 3s |
| Working temperature | -20°C~60°C |

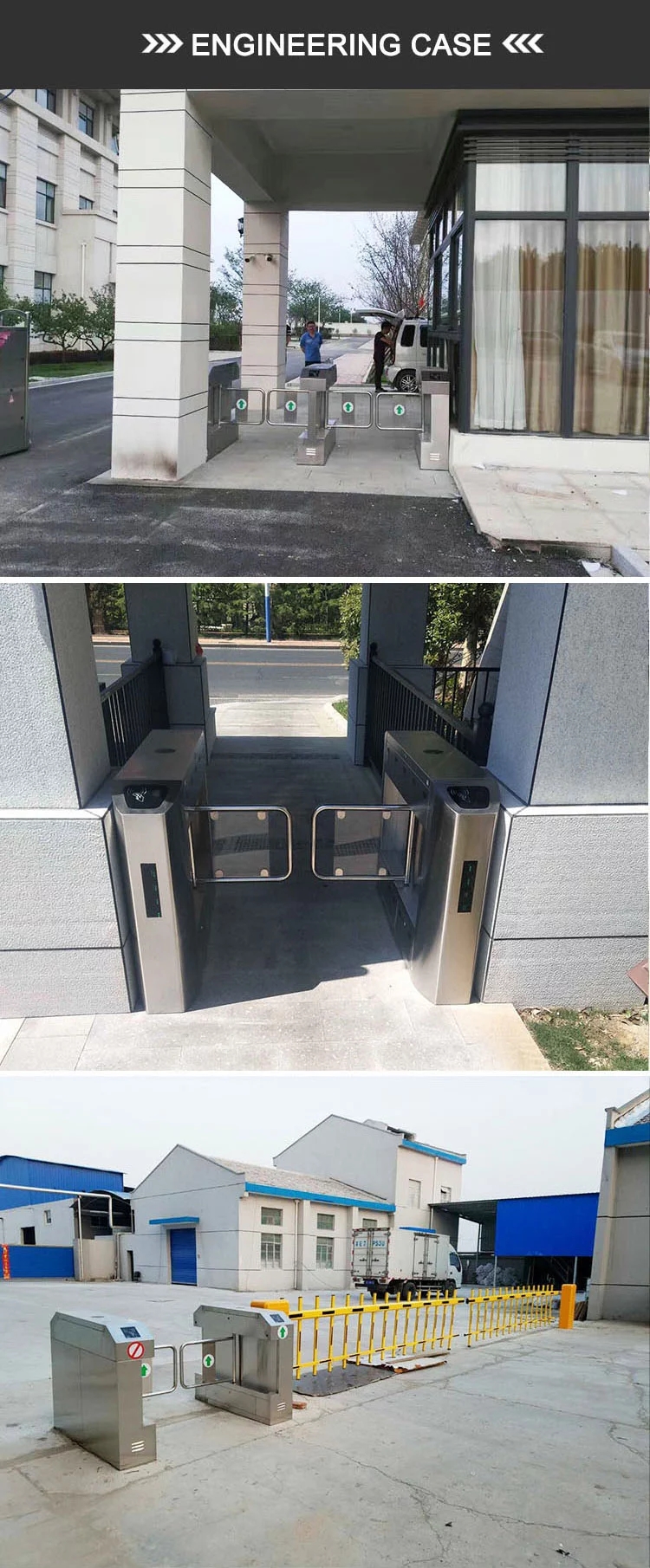

Case of Pedestrian Swing Gate:
Why choose us:
1. Our Factory has more than 20 years of OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.
5. Online technical support makes it carefree to be our business partner.
6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.
7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
