Brand Name : SINOMATIC
Model Number : SL600ACL
Certification : CE/ ISO
Place of Origin : Shenzhen, China.
MOQ : Sample order accepted
Price : negotiable
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 10,000 pcs per month
Delivery Time : 5-10 working days after payment received
Packaging Details : Carton/Plywood box/Pallet
Loading capacity : 600kg
Motor Power : 280W
Remote control distance : 30M
Gate Moving Speed : 11-13 m/min
Limit Switch : Spring (mechanical) / magnetic
Work Duty : S2 15min
SL600ACL SLIDING GATE OPENER
The SL600ACL gate opener designed for residential use, weight up to 600 Kg and operating distance up to 8 meters, Chain driven.
PRODUCT ADVANTAGES
Compact structure, cost-effective.
Built in control board
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Optional for spring limit switch and magnetic limit switch
Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)
MAIN FEATURES
1. AC motor with built-in control unit
2. Keypad/single button interface
3. Alarm lamp, photo beam and safety beam interface
4. User can select auto-close function
5. Soft start and slow stop (smart version)
6. Auto-reverse function when hitting obstacle during closing(smart version)
7. Manual key release design for emergency power failure
8. Chain driven with built-in control board.
9. RF Hopping Code Technology prevents your remote code from being accessible to others.
10. This powerful sliding gate operator can open gates that are up to 8 meter long and weigh 600KG.
11. In case of a power outage or an emergency you may also use manual release key.
TECHNICIAL SPECIFICATIONS
Model | SL600ACL |
Driving Mode | Chain |
Motor Speed | 55rpm |
Rated Output Power of Motor | 280W |
Output Torque | 16N.m |
Work Duty | S2 15min |
Limit Switch | Magnetic or spring limit switch |
Max. Gate Weight | 600KG |
Opening Speed | 13m/min |
Remote Control Range | ≥30M |
Recording of Up Remote Controls | Max. 25 remote transmitters |
Frequency | 433.92Hz |
Noise (No Load) | ≤58dB |
Output Shaft Height | 46mm |
Working Temperature | -20℃~70℃ |
Power Supply | 220V/50Hz(Optional: 110V/60Hz) |
Package Weight | 16KG |
Standard Configuration | 1 motor, 1 built-in control board, 2 remote controls, 2 keys, 2 chains(10’), 1 steel base plate |

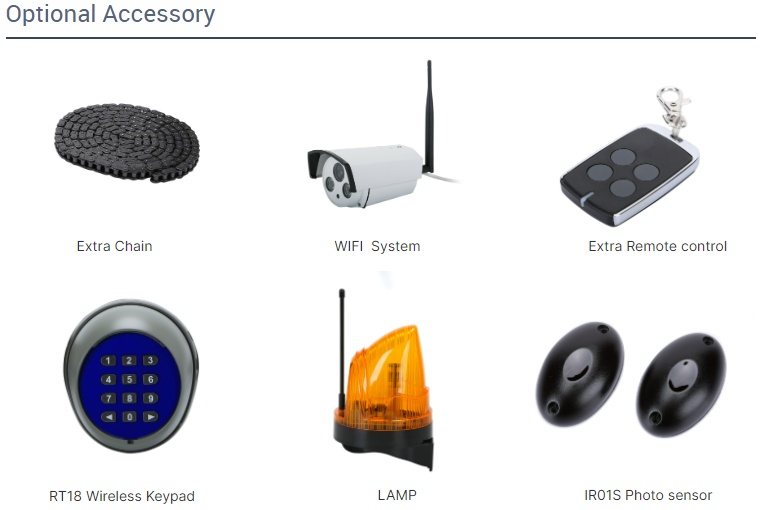

Optional Accessories | Photocell, 8mm steel gear rack, alarm wall lamp(20v/220v/110v), wireless keypad, wireless wall button |
Standard Unit:
PY600ACL motor+control board+2 transmitter+6m chain+iron plate+manual release key+installation manual
FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.
![]() |
